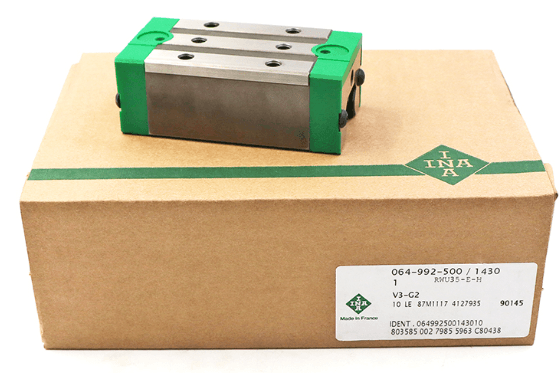

RWU25E Schaeffler INA Roller Bearing Carriage Runner Block
RWU25E Schaeffler INA Roller Bearing Carriage Runner Block
Regular price
$160.00 USD
Regular price
Sale price
$160.00 USD
Unit price
per
Couldn't load pickup availability
RWU25-E
INA Recirculating roller bearing carriage RWU25E
Standard carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication
Main Dimensions & Performance Data
| H |
36 mm
|
height system |
| B |
70 mm
|
width carriage |
| L |
91 mm
|
overall length carriage 1 |
| C |
28,000 N
|
dynamic load rating 2 |
| C0 |
65,000 N
|
dynamic load rating 2 |
| M0x |
350 Nm
|
static moment rating about X axis |
| M0y |
760 Nm
|
static moment rating about Y axis |
| M0Z |
680 Nm
|
static moment rating about Z axis |
| ≈m |
0.68 kg
|
Weight |
