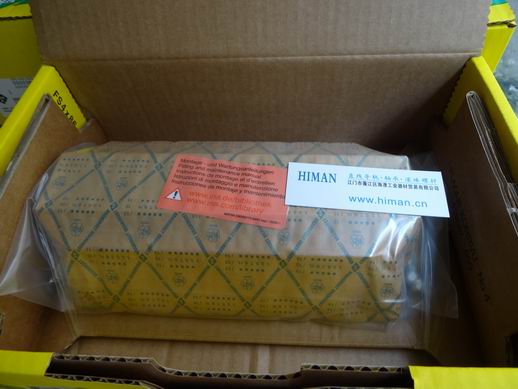

KWVE55BL Schaeffler INA Ball Carriage Linear Bearing Runner Block
KWVE55BL Schaeffler INA Ball Carriage Linear Bearing Runner Block
Regular price
$300.00 USD
Regular price
Sale price
$300.00 USD
Unit price
per
Couldn't load pickup availability
KWVE55-B-L
INA Recirculating ball bearing carriage KWVE55BL
Carriages KWVE..-B-L, long carriage, four-row, full complement ball set
Main Dimensions & Performance Data
| H |
70 mm
|
height system |
| B |
140 mm
|
width carriage |
| L |
211.6 mm
|
overall length carriage |
| C |
127,000 N
|
dynamic load rating 1 |
| C0 |
285,000 N
|
static load rating 1 |
| M0x |
7,500 Nm
|
static moment rating about X axis |
| M0y |
4,725 Nm
|
static moment rating about Y axis |
| M0z |
4,800 Nm
|
static moment rating about Z axis |
| ≈m |
6.6 kg
|
Weight |
