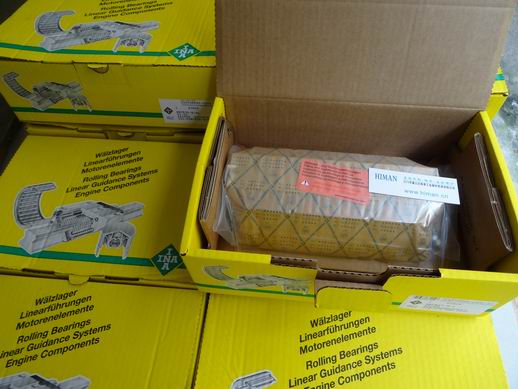

KWVE45BL Schaeffler INA Ball Carriage Linear Bearing Runner Block
KWVE45BL Schaeffler INA Ball Carriage Linear Bearing Runner Block
Regular price
$190.00 USD
Regular price
Sale price
$190.00 USD
Unit price
per
Couldn't load pickup availability
KWVE45-B-L
INA Recirculating ball bearing carriage KWVE45BL
Carriages KWVE..-B-L, long carriage, four-row, full complement ball set
Main Dimensions & Performance Data
| H |
60 mm
|
height system |
| B |
120 mm
|
width carriage |
| L |
172.7 mm
|
overall length carriage |
| C |
82,000 N
|
dynamic load rating 1 |
| C0 |
181,000 N
|
static load rating 1 |
| M0x |
4,635 Nm
|
static moment rating about X axis |
| M0y |
4,000 Nm
|
static moment rating about Y axis |
| M0z |
4,000 Nm
|
static moment rating about Z axis |
| ≈m |
4.3 kg
|
Weight |
