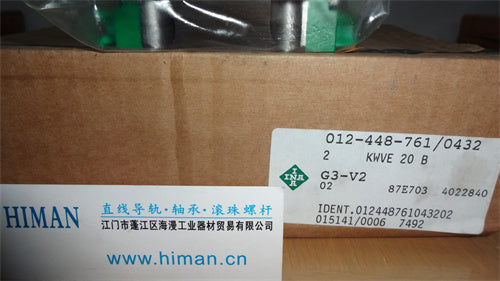

KWVE20BNL Schaeffler INA Ball Carriage Linear Bearing Runner Block
KWVE20BNL Schaeffler INA Ball Carriage Linear Bearing Runner Block
Regular price
$90.00 USD
Regular price
Sale price
$90.00 USD
Unit price
per
Couldn't load pickup availability
KWVE20-B-NL
INA Recirculating ball bearing carriage KWVE20BNL
Carriages KWVE..-B-NL, low, long carriage, four-row
Main Dimensions & Performance Data
| H |
27 mm
|
height system |
| B |
63 mm
|
width carriage |
| L |
88.9 mm
|
overall length carriage |
| C |
16,200 N
|
dynamic load rating 1 |
| C0 |
36,500 N
|
static load rating 1 |
| M0x |
452 Nm
|
static moment rating about X axis |
| M0y |
430 Nm
|
static moment rating about Y axis |
| M0z |
430 Nm
|
static moment rating about Z axis |
| ≈m |
0.51 kg
|
Weight |
