INA

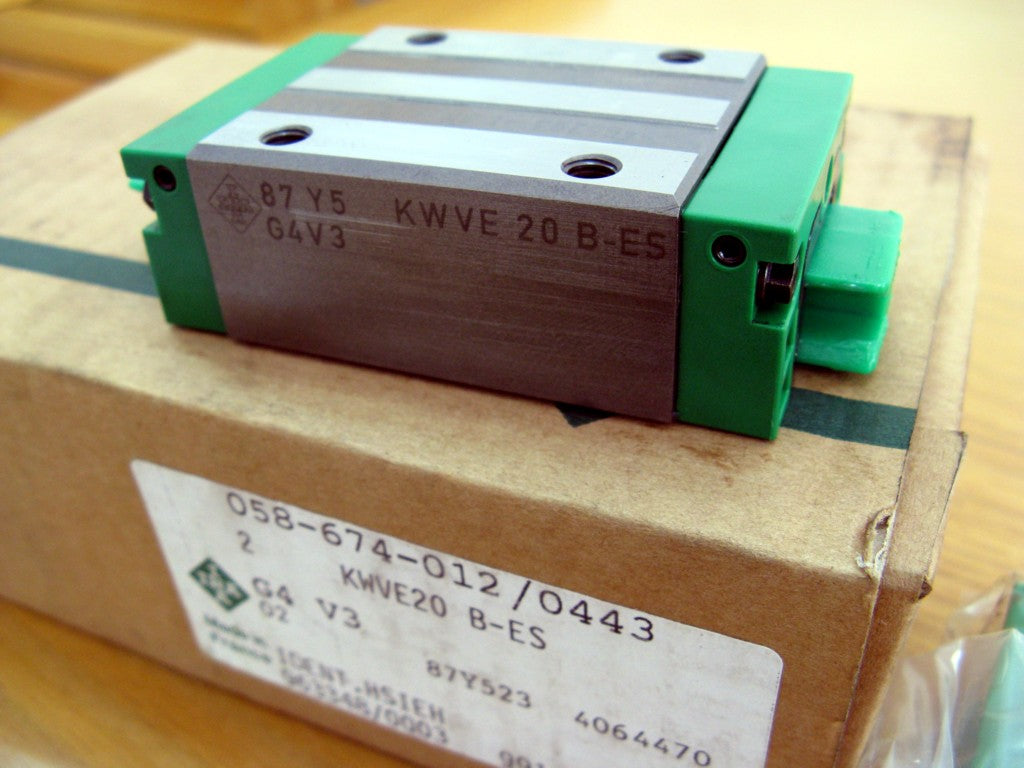

KWVE20BESC Schaeffler INA Ball Carriage Linear Bearings Runner Block
KWVE20BESC Schaeffler INA Ball Carriage Linear Bearings Runner Block
Regular price
$85.00 USD
Regular price
Sale price
$85.00 USD
Unit price
per
Couldn't load pickup availability
INA Ball monorail guidance systems KUVE20BESC Carriages KWVE20BESC
standard carriage, four-row, full complement ball set
Main Dimensions & Performance Data
| H | 28 mm | height system |
| B | 42 mm | width carriage |
| L | 50.4 mm | overall length carriage |
| C | 8,900 N | dynamic load rating 1 |
| C0 | 15,400 N | static load rating 1 |
| M0x | 190 Nm | static moment rating about X axis |
| M0y | 85 Nm | static moment rating about Y axis |
| M0z | 85 Nm | static moment rating about Z axis |
| ≈m | 0.18 kg | Weight |
