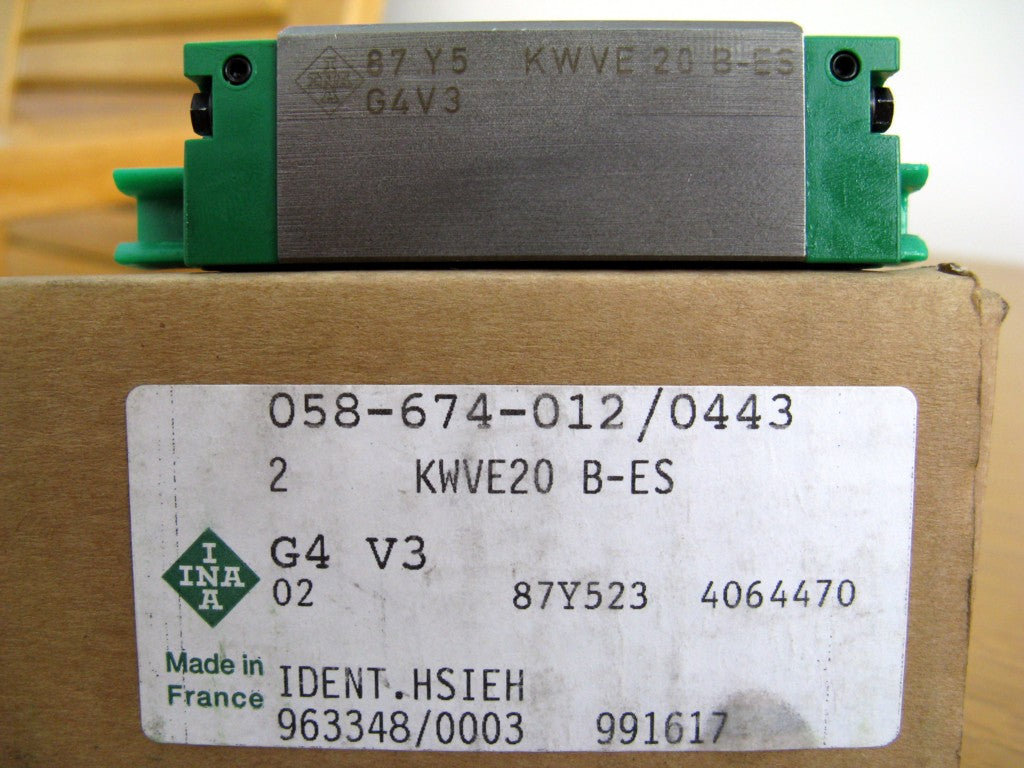

KWVE20BES Schaeffler INA Ball Carriage Linear Bearing Runner Block
KWVE20BES Schaeffler INA Ball Carriage Linear Bearing Runner Block
Regular price
$85.00 USD
Regular price
Sale price
$85.00 USD
Unit price
per
Couldn't load pickup availability
INA Recirculating ball bearing carriage KWVE20BES
Carriages KWVE..-B-ES, carriage for four-row linear ball bearing and guideway assembly, expanded type, narrow design
Main Dimensions & Performance Data
| H | 28 mm | height system |
| B | 42 mm | width carriage |
| L | 71.4 mm | overall length carriage |
| C | 13,100 N | dynamic load rating 1 |
| C0 | 27,000 N | static load rating 1 |
| M0x | 332 Nm | static moment rating about X axis |
| M0y | 240 Nm | static moment rating about Y axis |
| M0z | 240 Nm | static moment rating about Z axis |
| ≈m | 0.31 kg | Weight |
