INA

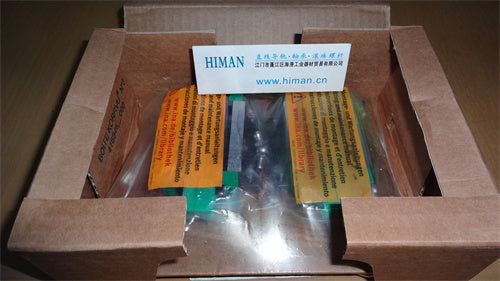

KWVE20BE Schaeffler INA Ball Carriage Linear Bearing Runner Block
KWVE20BE Schaeffler INA Ball Carriage Linear Bearing Runner Block
Regular price
$70.00 USD
Regular price
Sale price
$70.00 USD
Unit price
per
Couldn't load pickup availability
KWVE20-B-E
INA Recirculating ball bearing carriage KWVE20BE
Carriages KWVE..-B-E, standard carriage, four-row, full complement, expanded type
Main Dimensions & Performance Data
| H |
28 mm
|
height system |
| B |
59 mm
|
width carriage |
| L |
71.4 mm
|
overall length carriage |
| C |
13,100 N
|
dynamic load rating 1 |
| C0 |
27,000 N
|
static load rating 1 |
| M0x |
332 Nm
|
static moment rating about X axis |
| M0y |
240 Nm
|
static moment rating about Y axis |
| M0z |
240 Nm
|
static moment rating about Z axis |
| ≈m |
0.36 kg
|
Weight |
