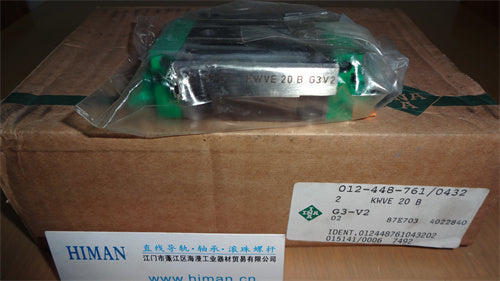

KWVE20B G3V2 Schaeffler INA Ball Bearing Carriage Linear Motion Runner Block
KWVE20B G3V2 Schaeffler INA Ball Bearing Carriage Linear Motion Runner Block
Regular price
$85.00 USD
Regular price
Sale price
$85.00 USD
Unit price
per
Couldn't load pickup availability
INA Ball monorail guidance systems KUVE20 Carriages KWVE20B-G3V2
standard carriage, four-row, full complement ball set
Main Dimensions & Performance Data
| H | 30 mm | height system |
| B | 63 mm | width carriage |
| L | 71.4 mm | overall length carriage |
| C | 13,100 N | dynamic load rating 1 |
| C0 | 27,000 N | static load rating 1 |
| M0x | 332 Nm | static moment rating about X axis |
| M0y | 240 Nm | static moment rating about Y axis |
| M0z | 240 Nm | static moment rating about Z axis |
| ≈m | 0.44 kg | Weight |
